Road Choice Spring Brake 30/30 Long Stroke Without Clevis

Stock: RC SB3030LS Category: Air & Brake

Last Updated: 06/10/2025

Main images of Road Choice Spring Brake 30/30 Long Stroke Without Clevis
Slide images of Road Choice Spring Brake 30/30 Long Stroke Without Clevis
Request more infoFinance Inquiry

Brand

Road Choice

Part number

RC SB3030LS

Condition:

New

Weight

20.5 Lbs

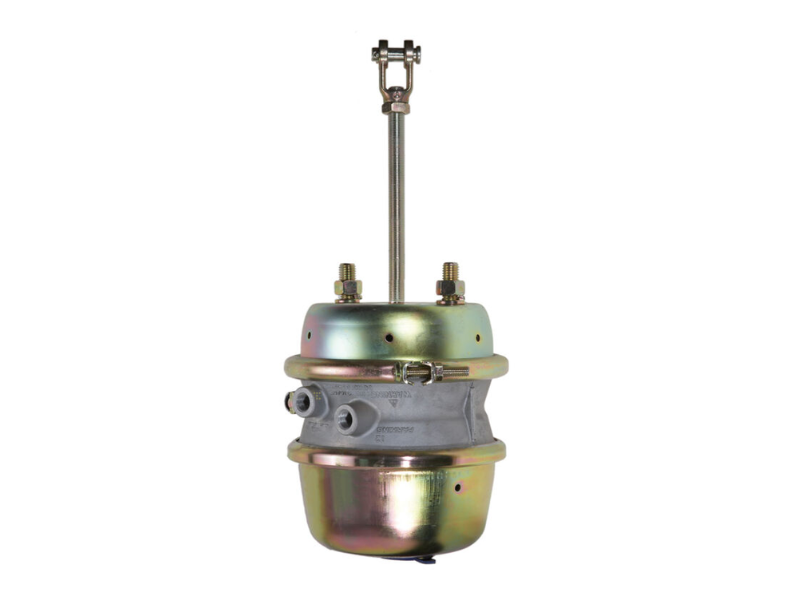

This is a listing for one Road Choice Spring Brake 30 By 30 Long Stroke Without Clevis.

Specifications:
  • Chamber Type: 30 / 30
  • Stroke Length (in): 3.00
  • Stroke Length (mm): 76.20
  • Push Rod Length (in): 8.00
  • Push Rod Length (mm): 203.20
  • Height (in): 10.31
  • Height (mm): 261.87
  • Mounting Bolt Length (in): 1.50
  • Mounting Bolt Length (mm): 38.10
  • Bolt Hole Size: 0.63
  • Bolt Circle (in): 4.75
  • Bolt Circle (mm): 120.65
  • Clevis: Threaded Yoke 5/8" - 18 UNF
  • Ports: Square
  • Housing Diameter (in): 5.7
  • Clamp Diameter (in): 8.3
  • Diaphragm Diameter (in): 8
  • Rod Size (in): 5/8-18
